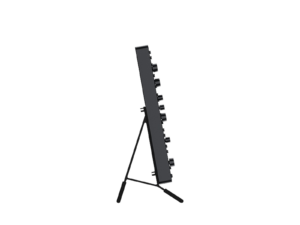

High Resolution Oscilloscope MHO 3 Series has 500MHz bandwidth, 3GSa/s sampling rate, 4 analog channels, 360Mpts memory depth and 12 bits vertical resolution; 3.58cm ultra-thin body support wall /arm mounting; 14-inch integrated touch screen with resolution of 1920 x 1200 brings unmatched waveform display.
It is powered by the SigtestUI™ multitasking system, which offers a user interface designed specifically for test instruments, allowing for operation as intuitive as using a smartphone, thereby making automotive diagnostics much easier.
Features MHO 3
Channel: 4
Bandwidth: 250 / 350 / 500 MHz
Sample rate: 3 GSa/s
Max Waveform capture rate: 230,000 wfms
Memory depth: 360 Mpts
Storage: Built-in 32GB
Bandwidth Channel Rise time (typ.)
MHO3-2504 250 MHz 4CH ≤1.4ns
MHO3-3504 350 MHz 4CH ≤1ns
MHO3-5004 500 MHz 4CH ≤0.7ns
