FR - Ultra-Real technology
- Frequency: 3 GHz
- Displayed average noise level (DANL): <-165 dBm (typical)
- Phase noise: <-108 dBc/Hz (typical)
- Level measurement uncertainty: <0.8 dB
- 3 GHz tracking generator
- RBW 1 Hz
- EMC filter and quasi-peak detector
- Various measurement functions
- Multiple measurement modes
- Up to 10 MHz real-time analysis bandwidth
- Multiple trigger modes and trigger masks
- Density, Spectrogram, and other display modes
- PC software options
- 1” capacitive multi-touch screen, supporting touch gestures
- USB, LAN, HDMI and other communication and display interfaces
- Vector Network Analyzer
- Please note: Optional SW options are not included with the standard product and must be purchased separately.

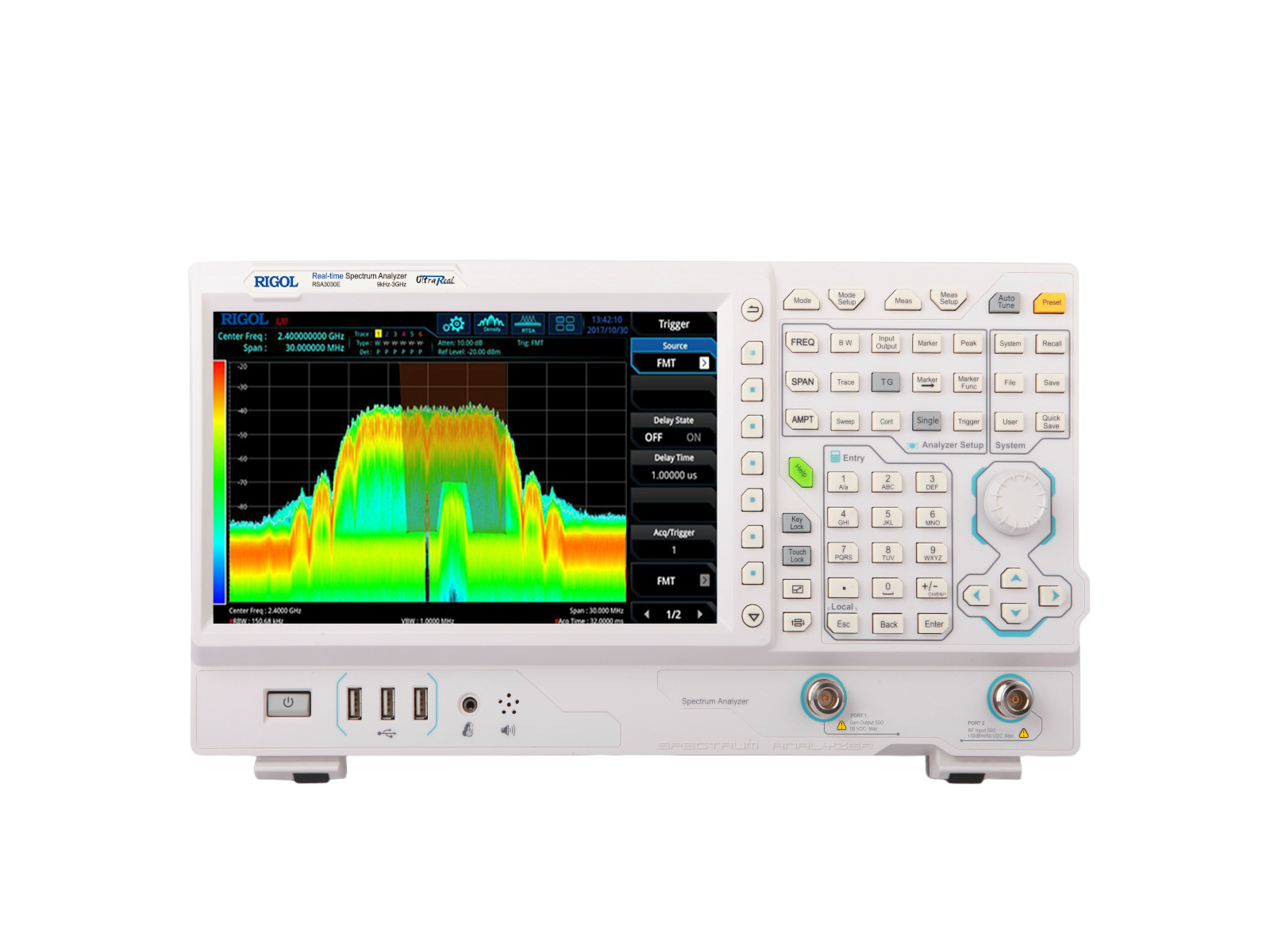

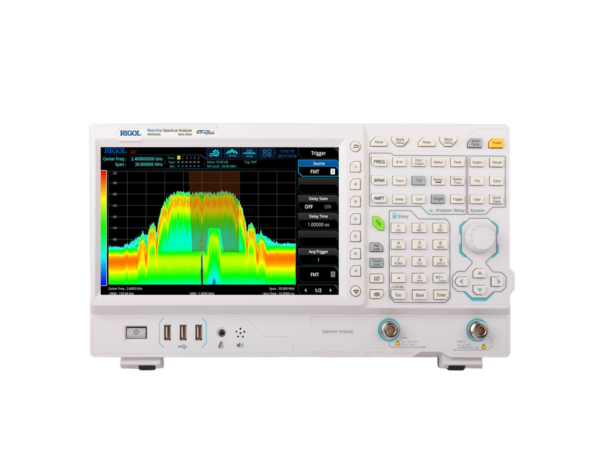

Rigol RSA3030E-TG
€3.399,00 net price
€4.044,81 incl. 19% Germany VAT
Real-time spectrum analyzer with a frequency range from 9 kHz to 3 GHz, up to 10 MHz real-time, 1 Hz – 3 MHz RBW and a 25.6 cm (10.1″) touchdisplay with 1024×600 pixel. Incl. tracking generator.
Delivery Content: 1x Power cord, 1x Quick guide
Delivery Date: 20 to 30 days after order
Datasheet
Datasheet_RIGOL_RSA3000E
Language: English
File Size: 2.33 MiB
Release Date: 08.10.2019
Quick Guide
QuickGuide_RIGOL_RSA3000E
Language: English
File Size: 10.33 MiB
Release Date: 08.10.2019
User Guide
Userguide_RIGOL_RSA3000E
Language: English
File Size: 7.44 MiB
Release Date: 27.12.2018
Programing Guide
ProgrammingGuide_RIGOL_RSA3000E
Language: English
File Size: 8.33 MiB
Release Date: 08.10.2019
