FR - SiFi (Signal Fidelity) for 100% waveform replication
- 8Mpts/CH(std.), 16Mpts/CH (opt.) arbitrary waveform length
- Standard 2 full functional independent channels
- ±1ppm frequency stability, -125dBc/Hz phase noise, 200ps low jitter
- Built-in 8 orders harmonics generator
- Built-in 7 digits/s counter up to 200MHz
- 160 built-in pre-edited waveforms
- Intuitive arbitrary waveform editing software
- Full modulation supported: AM, FM, PM, ASK, FSK, PSK and PWM

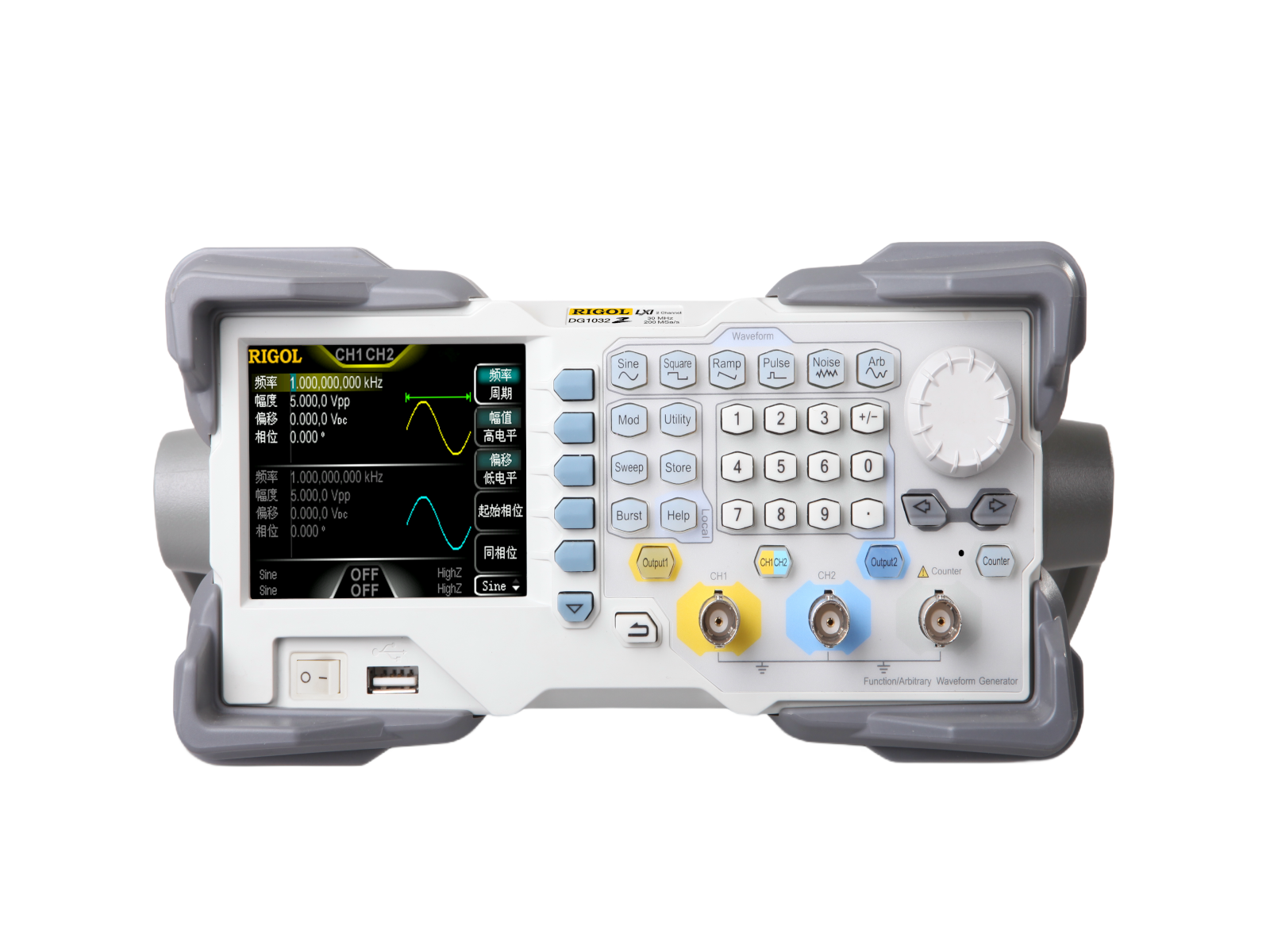

Rigol DG1032Z
€469,00 net price
€558,11 incl. 19% Germany VAT
2 channel function / arbitrary waveform generator with 1 μHz to 30 MHz bandwidth, 200 MSa/s samplerate, 14 Bit resolution, 2 Mpts memory depth (16Mpts optional), amplitude range 1 mVpp to 10 Vpp (high impedance), 8.9 cm (3.5″) Display.
Delivery Content: USB cable, BNC cable (1 m), power adapter and quickstart manual.
Delivery Date: 10 to 30 days after order
Datasheet
DataSheet_RIGOL_DG1000Z
Language: English
File Size: 3.02 MiB
Release Date: 17.12.2018
Quick Guide
QuickGuide_RIGOL_DG1000Z
Language: English
File Size: 1.07 MiB
Release Date: 01.08.2016
User Guide
UserGuide_RIGOL_DG1000Z
Language: English
File Size: 2.09 MiB
Release Date: 01.11.2016
UserGuide_RIGOL_DG1000Z
Language: German
File Size: 2.67 MiB
Release Date: 01.10.2014
Reviews
There are no reviews yet.
